What is the main working principle of a Hydraulic Square Ear Flanging Machine?

The Hydraulic Square Ear Flanging Machines, with their unique performance advantages, have occupied a crucial position among various metal forming equipment, becoming an indispensable tool for manufacturing high-quality square lug structures.

1. Hydraulic Square Ear Flanging Machine: Core Working Principle

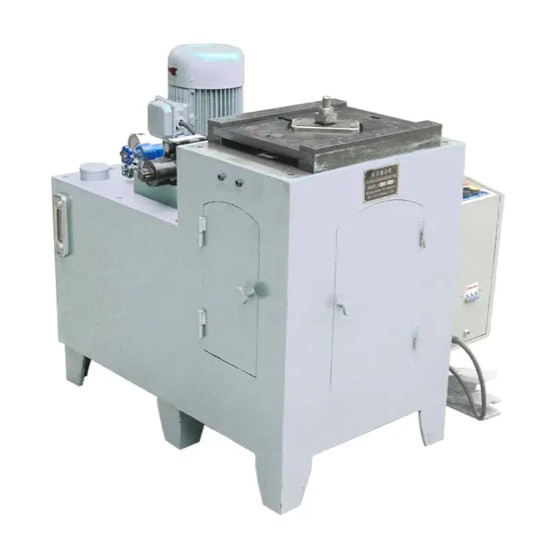

A Hydraulic Square Ear Flanging Machine is a specialized device that utilizes the principles of fluid mechanics to perform plastic deformation of metals. Its core operating principles can be summarized as "hydraulic drive, precise pressure application, and die forming."

Hydraulic Power Source:

The heart of the equipment is the hydraulic system. It consists of a hydraulic pump, cylinder, control valve, and oil tank. The hydraulic pump converts mechanical energy into liquid pressure energy. High-pressure oil is then delivered through pipelines to the actuator—the hydraulic cylinder.

Pressure Application and Control:

The operator precisely controls the hydraulic valve using a control system (such as a PLC or CNC system). When high-pressure oil enters the cylinder, the piston rod is driven, generating tremendous thrust. The advantage of a Hydraulic Square Ear Flanging Machine lies in its ability to provide smooth, uniform, and precisely adjustable pressure, which is crucial for preventing cracks or excessive stretching in the sheet metal during the flanging process.

Molding and Forming:

The workpiece (a metal sheet or pipe edge) is placed in a customized mold station. The mold typically consists of two parts, the upper and lower parts, whose shape precisely matches the desired "square lug structure." Under the powerful pressure of the hydraulic cylinder, the mold applies pressure and shear forces to the sheet metal edge, forcing the metal material to plastically flow along a predetermined path, ultimately forming a smooth, dense square lug structure. This process ensures the quality and geometric accuracy of the workpiece's flanging.

II. Technical Advantages of Hydraulic Square Ear Flanging Machines

Compared to traditional mechanical stamping or manual flanging machines, Hydraulic Square Ear Flanging Machines offer significant technical advantages:

III. Applications of Hydraulic Square Ear Flanging Machines

Due to their superior performance, Hydraulic Square Ear Flanging Machines are widely used in applications requiring strong connections and sealing properties, including:

• Industrial Manufacturing: Used for forming the edges of end caps for storage tanks, pressure vessels, and boilers.


• Automotive parts: Edge reinforcement and flanging of specific vehicle body components.


• Ventilation systems: Fabrication of square lug structures for duct and pipe connections to ensure tight connections.



Hydraulic Square Ear Flanging Machines are modern equipment that utilize a powerful hydraulic system for precise and efficient metal processing. They are ideal for ensuring high-quality forming of square lug structures on products.
